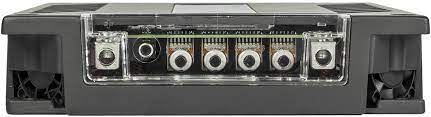

BANDA ICE X1601

Total Power 14,4 @ 1 Ohm

2300 WRMS

Total Power 14,4 @ 2 Ohms

1700 WRMS

Total Power 12,6 @ 1 Ohm

1600 WRMS

Total Power 12,6 @ 2 Ohms

1300 WRMS

Efficiency @ 2 Ohms

81%

Efficiency @ 1 Ohm

70%

Input Voltage

9 – 15V

Input Impedance

100K Ohms

THD+Noise

0,1%

Input Sensitivity

155mV – 8V

SNR

84dB

Frequency Response (Key OFF)

5 to 22kHz (-3dBs)

Frequency Response

20 to 20kHz (-3dBs)

Bass Bosst @ 45Hz

Variable 0 to +18dBs

HPF (Subsonic)

20 to 80Hz @ 12dB/octave Linkwitz-Riley

LPF (Crossover)

80 to 20kHz @ 12dB/octave Linkwitz-Riley

Recommended Fuse

80 A

Current at Rest

2 A

Average Current Draw (Sinusoidal)

180 A

Average Current Draw (Music)

90 A

Power Wire Gauge (min. Recommended)

16mm / 5 AWG

Speaker Wire Gauge (min. Recommended)

2 x 4mm / 2 x 11 AWG

Weight (Lb)

7.2

Height (in)

2.2

Width (in)

8.4

Depth (in)

9.7
